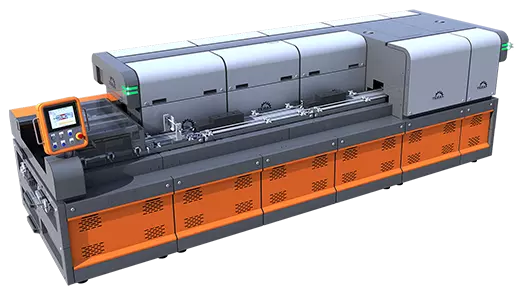

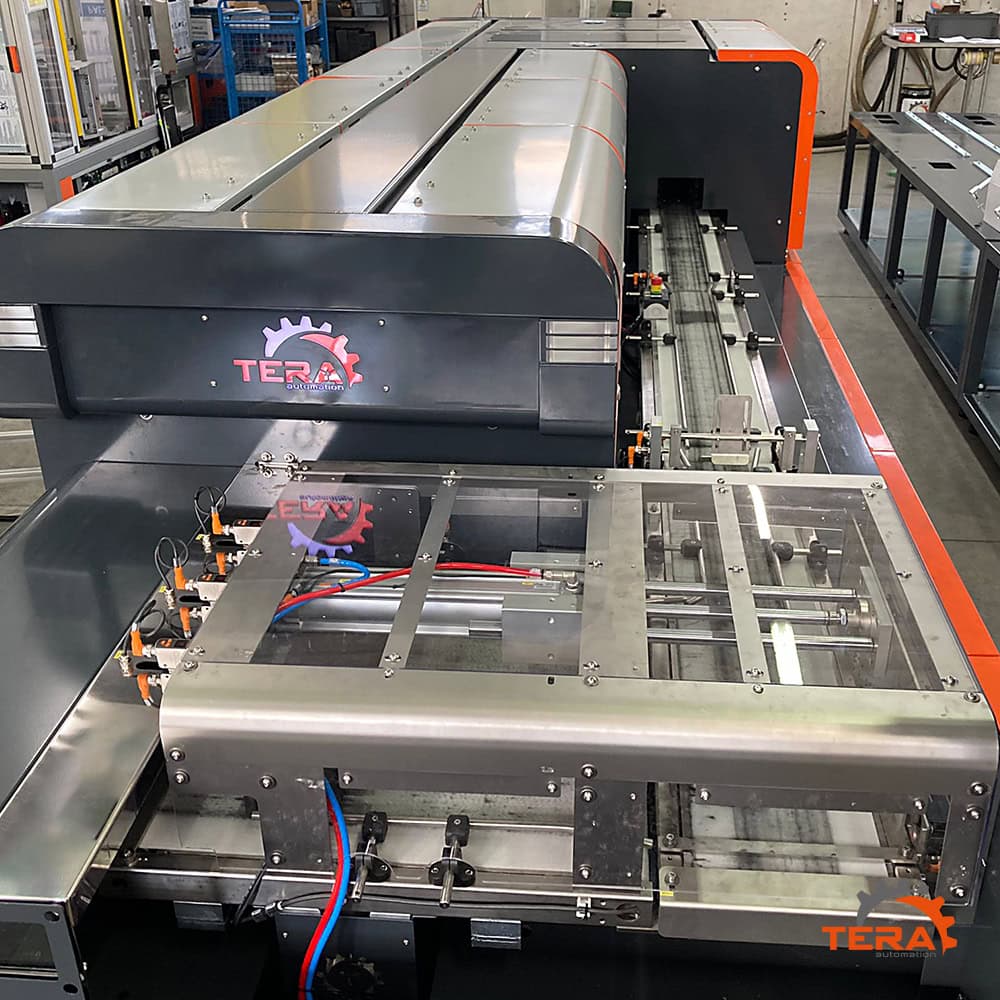

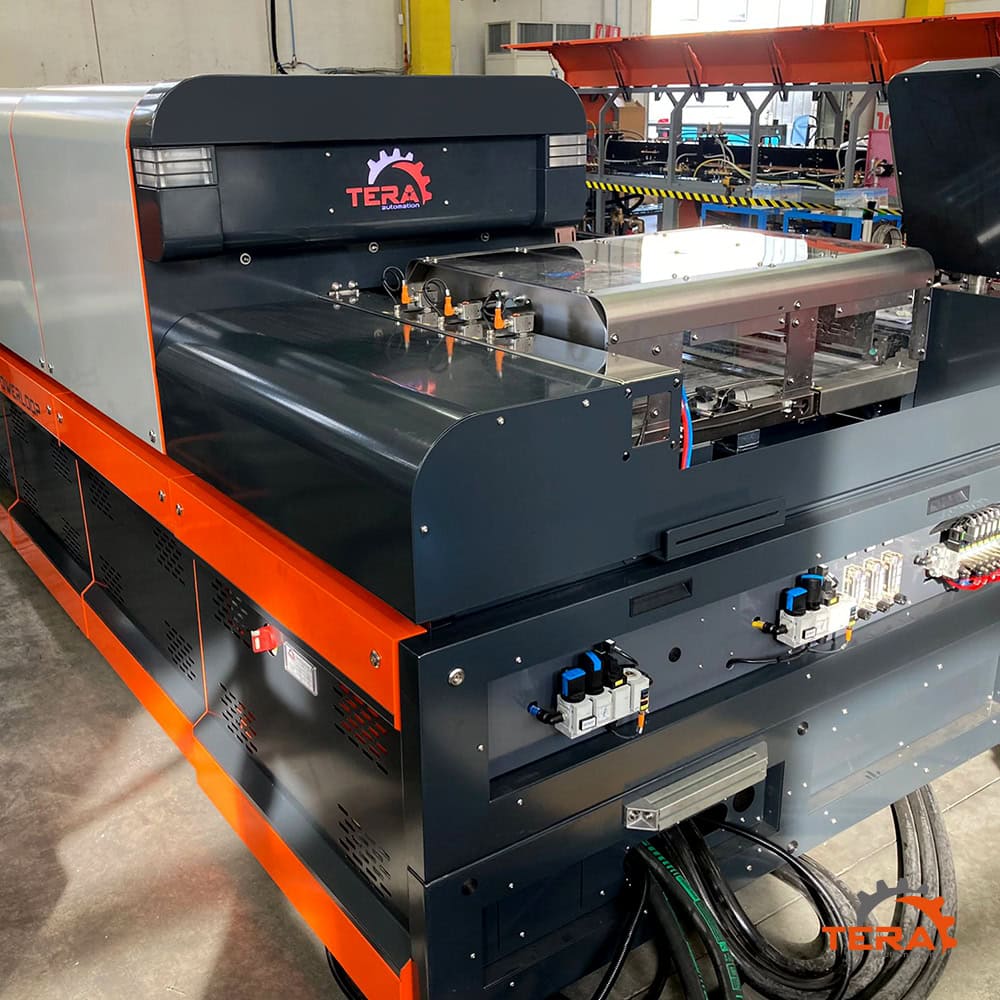

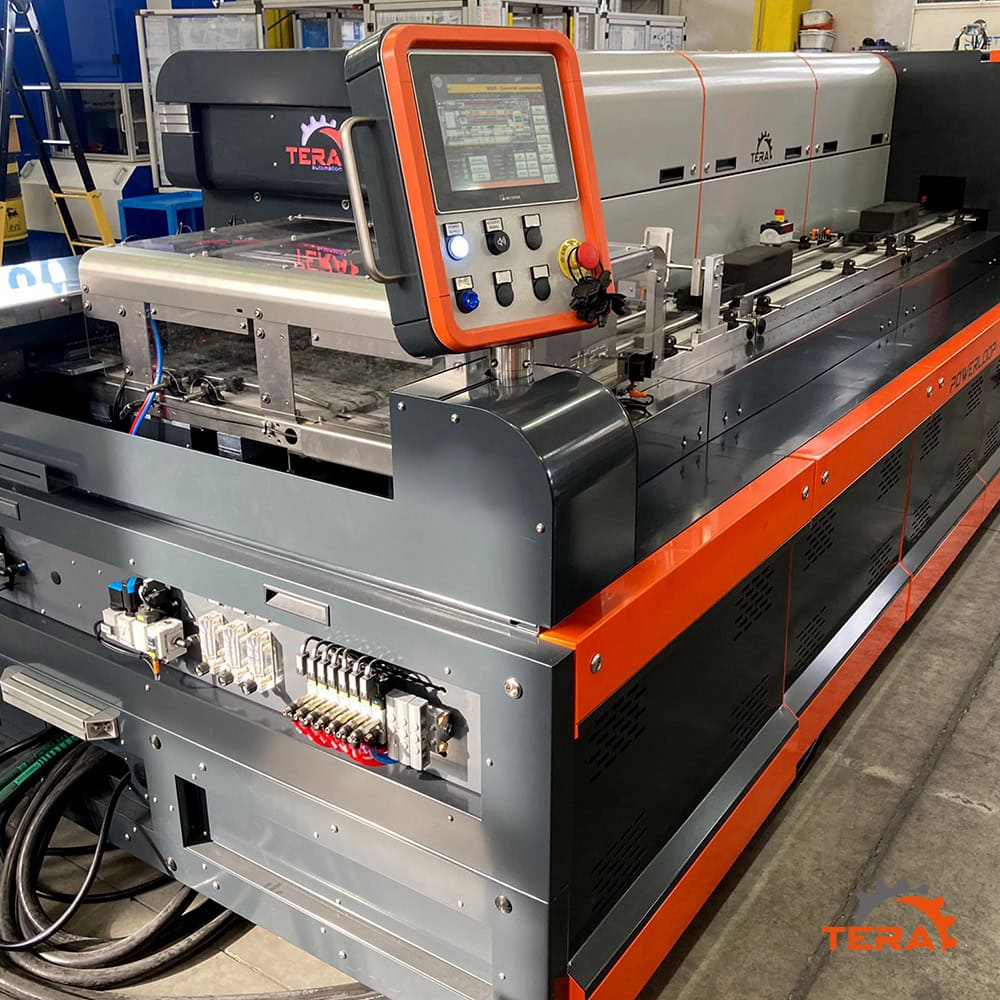

T-BARMASTER POWERLOOP

FULL CHAIN IN ONE SYSTEM

T-Barmaster Powerloop is the new revolutionary compact induction tunnel furnace for the continuous production of high-quality gold and silver ingots from 1 oz to 400 oz. This new version of our best-selling T-Barmaster furnace is designed for companies with special space requirements. Its special closed-loop-shape dramatically reduces the dimensions of the furnace, which doesn’t need the Conveyor Belts nor the Conveyor Chain to transport the ingots. Same performance as standard models (T-Barmaster One, 400 and 1000) with a reduction of footprint of 45%.

TYPES OF INGOTS PRODUCED

1 oz
50 g
100 g
250 g
500 g
1 kg
100 oz Ag
5 kg
10 kg Ag
400 oz Au

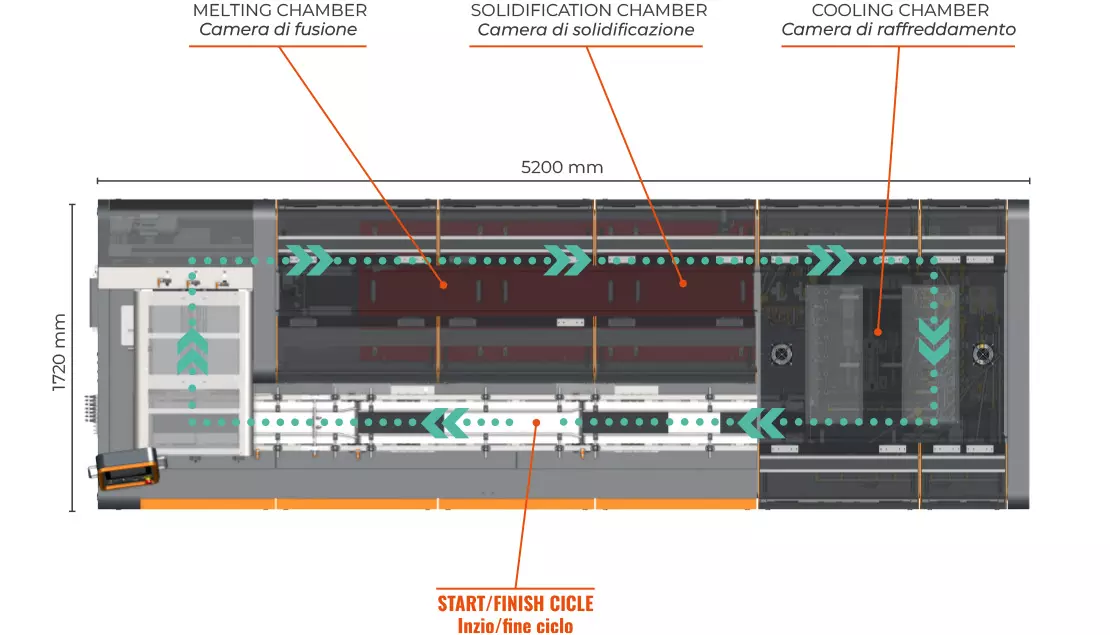

schema t barmaster powerloop come funziona it

TECHNICAL CHARACTERISTICS:

VERSIONT-BARMASTER POWER LOOP
T-BARMASTER ONE PLUST-BARMASTER 400 PLUS
Dimensions (mm) 5200 x 1720 x 1610 h 5200 x 1720 x 1610 h
Inductor power (kW) 120 160 120 160
Au/Ag Kilobar/h 90 ÷ 100 110 ÷ 120 80 ÷ 90 100 ÷ 110
Au Good Delivery/h -- -- 18 ÷ 20 20 ÷ 22
Ag Good Delivery/h -- -- -- --
N° of molds 15/30 15/30
N° of spacers 15 15
BROCHURE

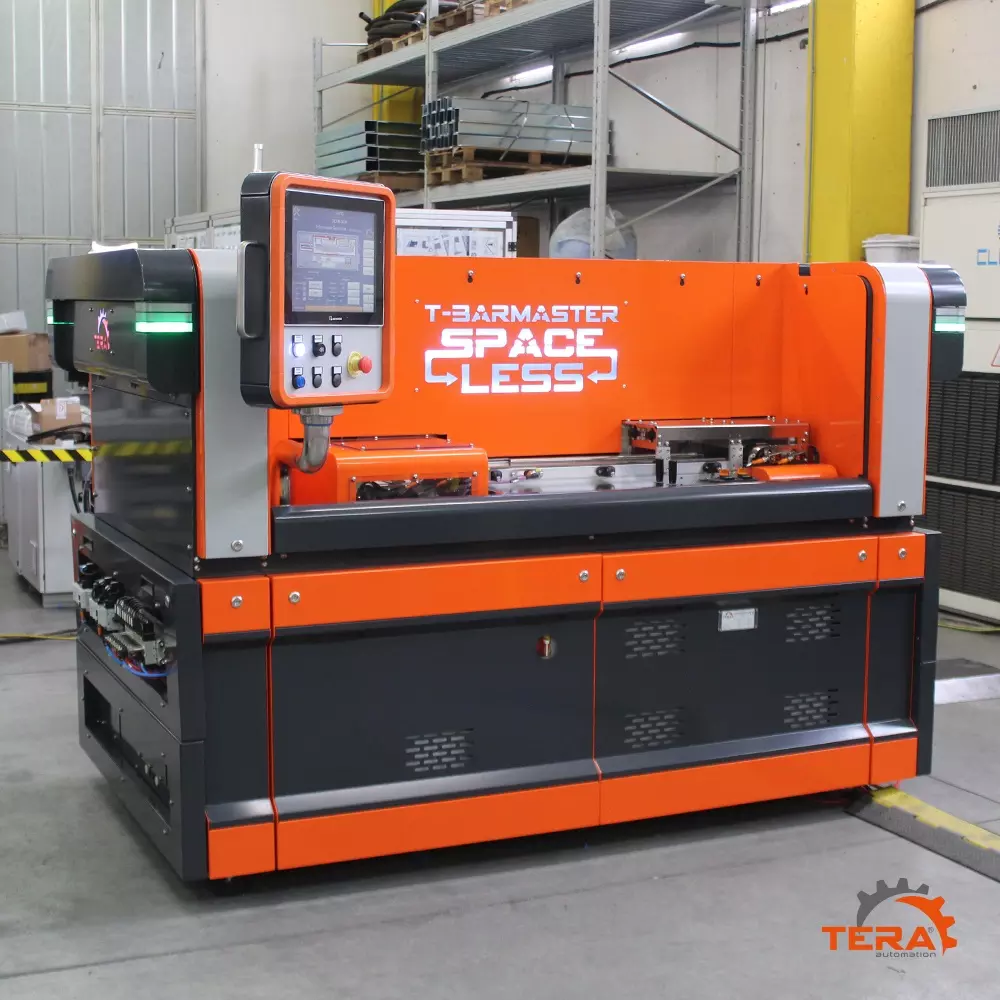

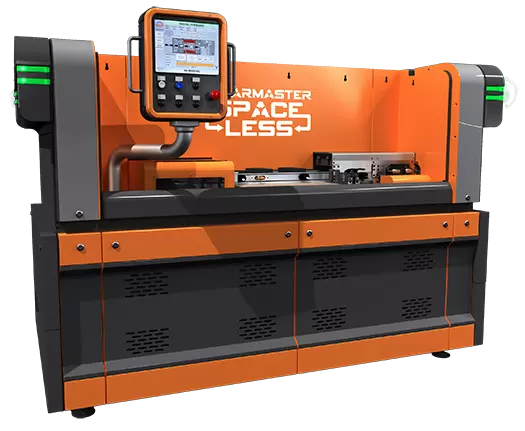

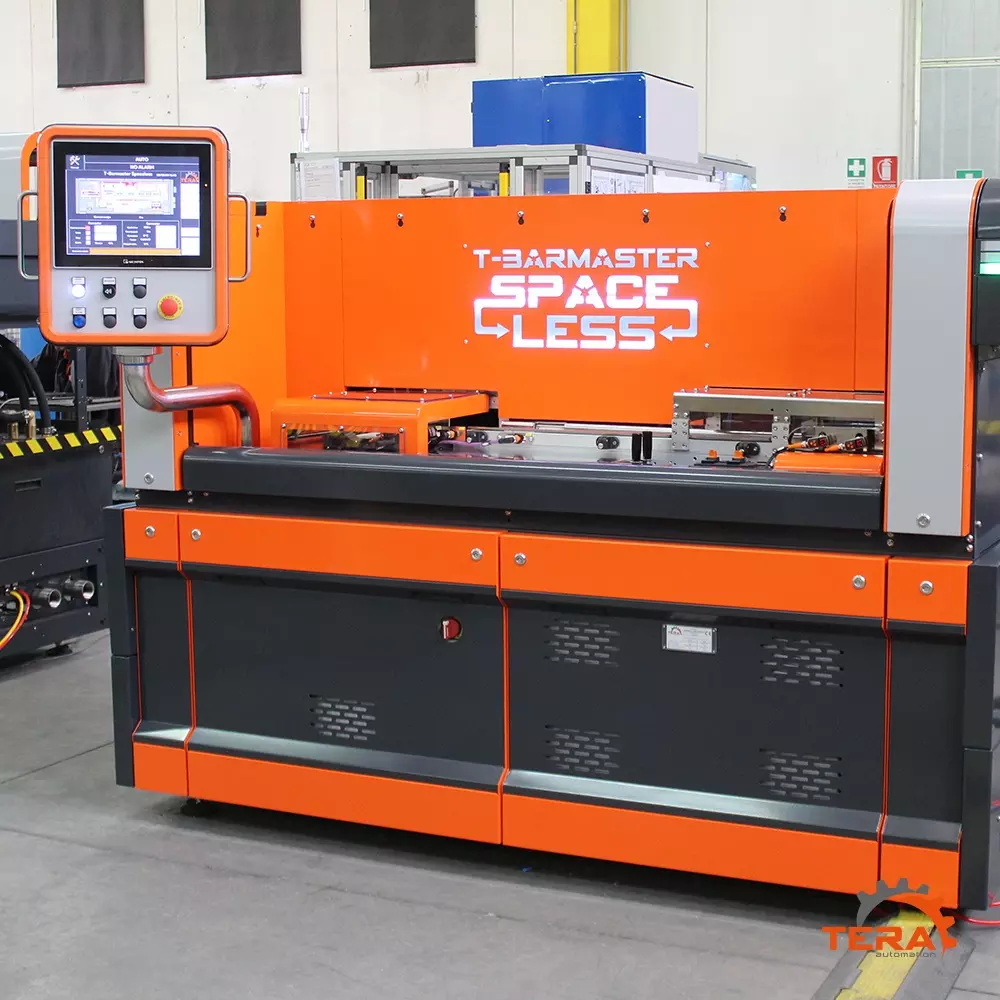

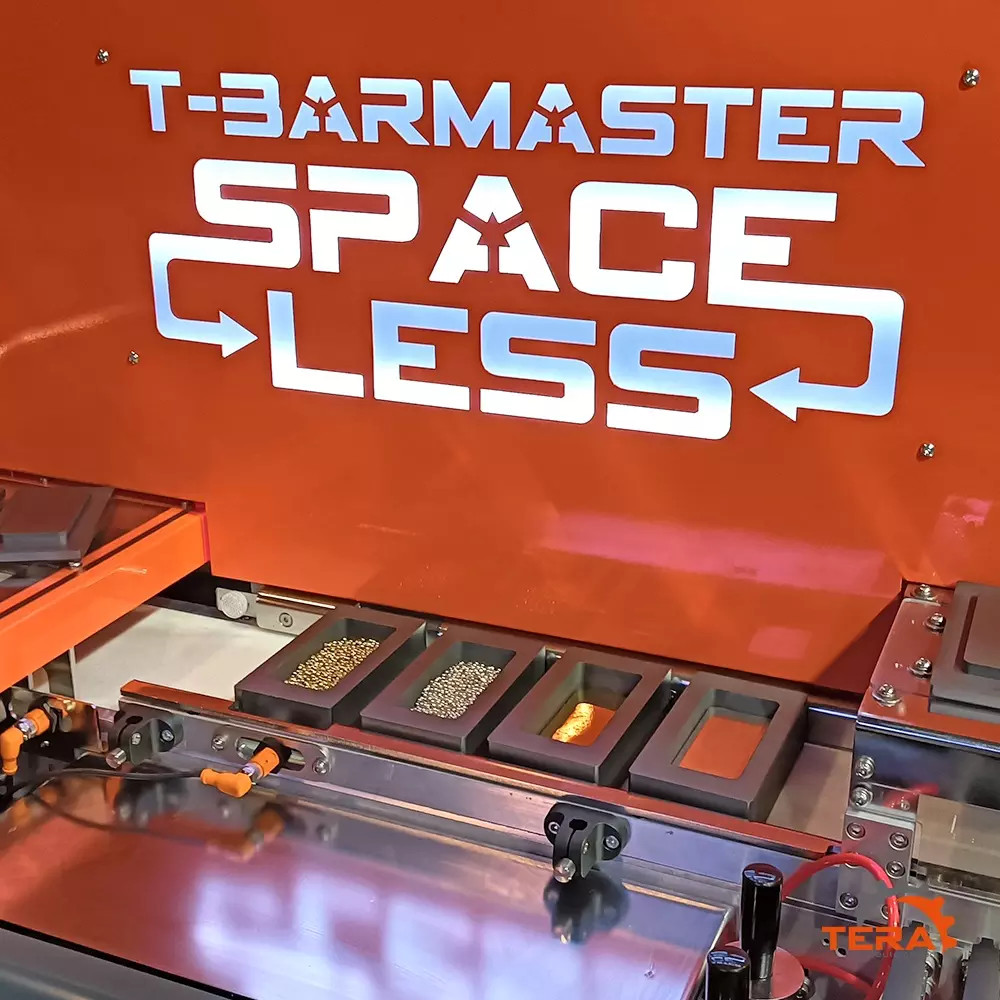

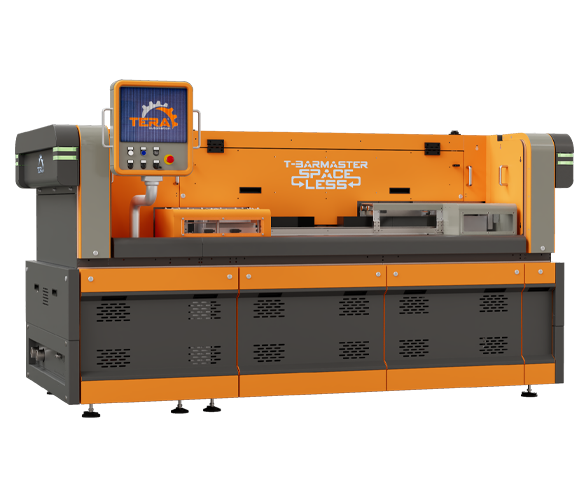

T-BARMASTER SPACELESS

COMPACT, SUSTAINABLE, AND HIGH-PERFORMANCE

The “Spaceless” concept is geared towards maximum optimisation of our tunnel furnace. Less space occupied, less consumption, optimum performance. To achieve this, we decided to eliminate spacers and rethink the entire design of our T-Barmaster.

With the "Spaceless" furnace, we have successfully reduced our ecological footprint by minimizing raw material usage and optimizing the balance between energy consumption and production. This results in significant advantages across the board!

TYPES OF INGOTS PRODUCED

1 oz
50 g
100 g
250 g
500 g
1 kg
100 oz Ag
5 kg Au
10 kg Ag
400 oz Au

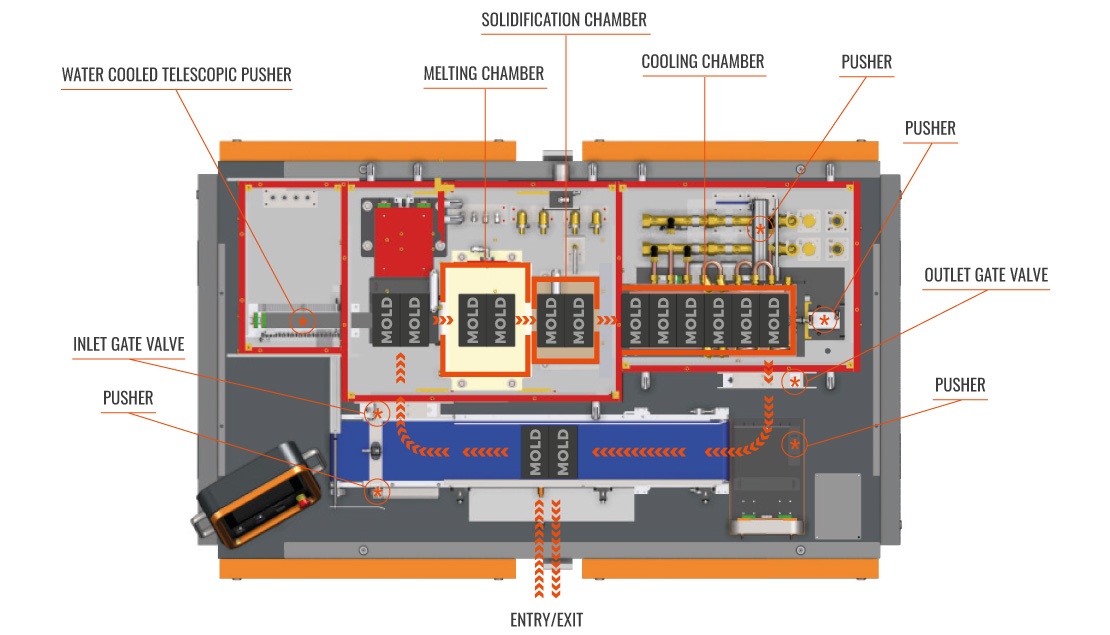

schema t barmaster spaceless come funziona

TECHNICAL CHARACTERISTICS:

VERSIONT-BARMASTER ONE SMART SPACELESS
Total absorbed power 24 kW
Converter power 20 kW
Ingots per working cycle 20
Ag/Au kilobar/h 20
Overall dimensions (LxWxH) 2400 x 1350 x 1700 mm
Overall weight 1500 kg
Converter high efficiency, integrated
BROCHURE VIDEO

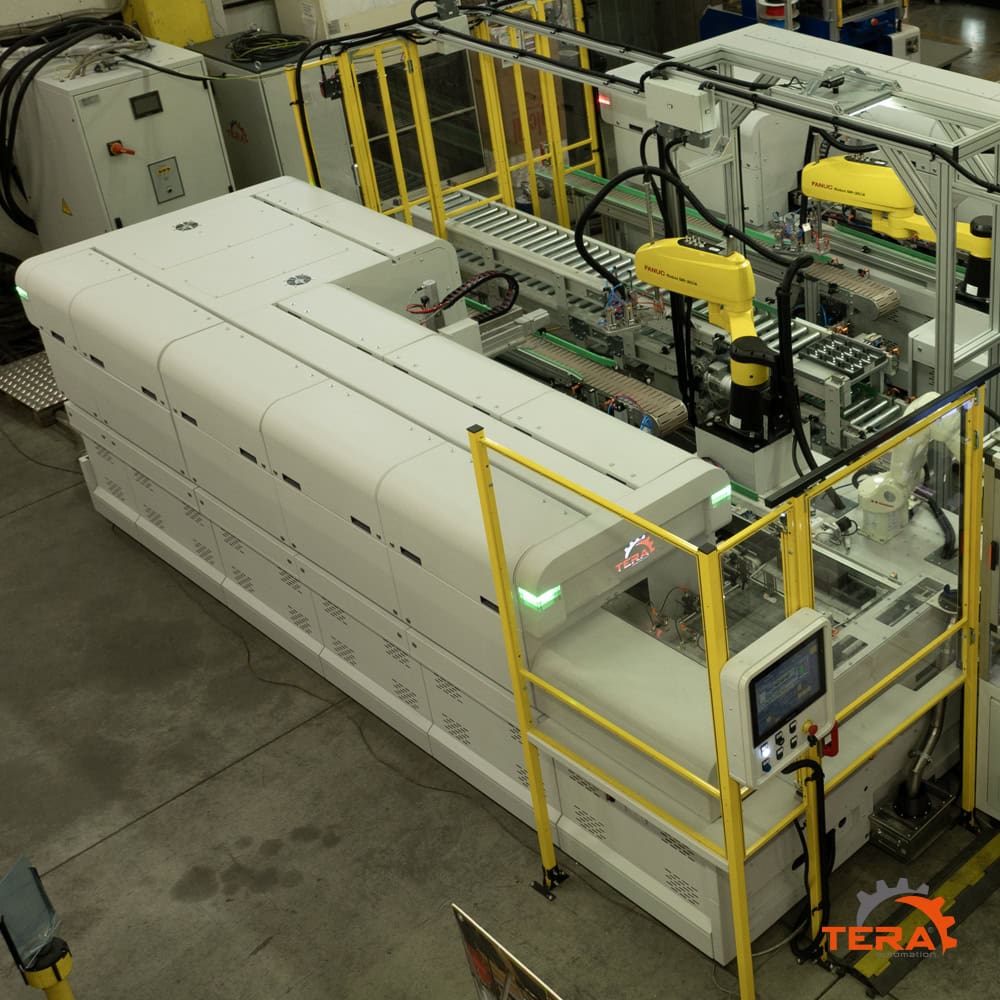

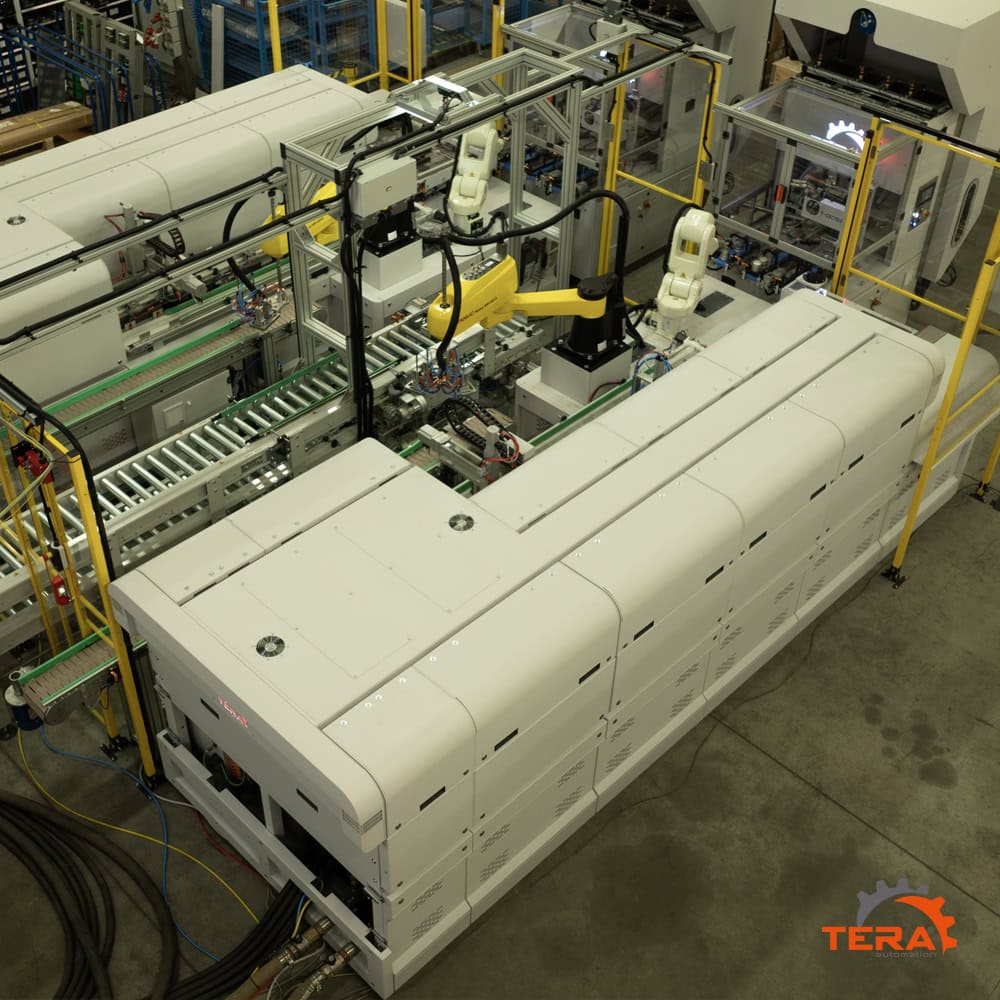

CHOOSE THE AUTOMATION LEVEL THAT BEST SUITS YOUR COMPANY

AUTOMATION FOR FLAWLESS INGOTS PRODUCTION

Each Tera Automation machine can be conceived as part of a modular line which can be combined according to the company's needs and facility space. Each machine can be fitted to existing machines and a full line can be developed over time.

The standard model of our T-Barmaster™ is semi-automatic, but it can reach a high level of automation. By adding accessories, machines and robots, operators can set the machine at increasing levels of automation and let it work accordingly:

T-Dosing™ è progettata per eseguire una dosatura estremamente accurata – con uno scarto fino al millesimo di grammo – dei metalli preziosi destinati alla fusione e può essere abbinata ad altri macchinari, in accordo con le esigenze specifiche di ciascun operatore.
