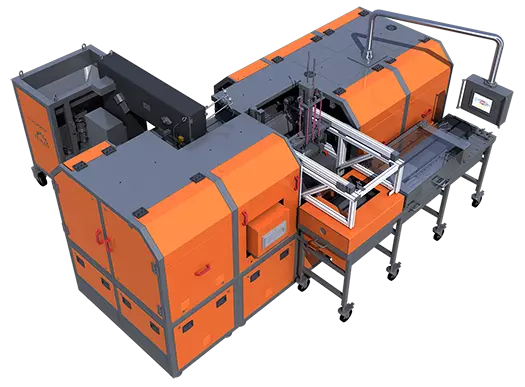

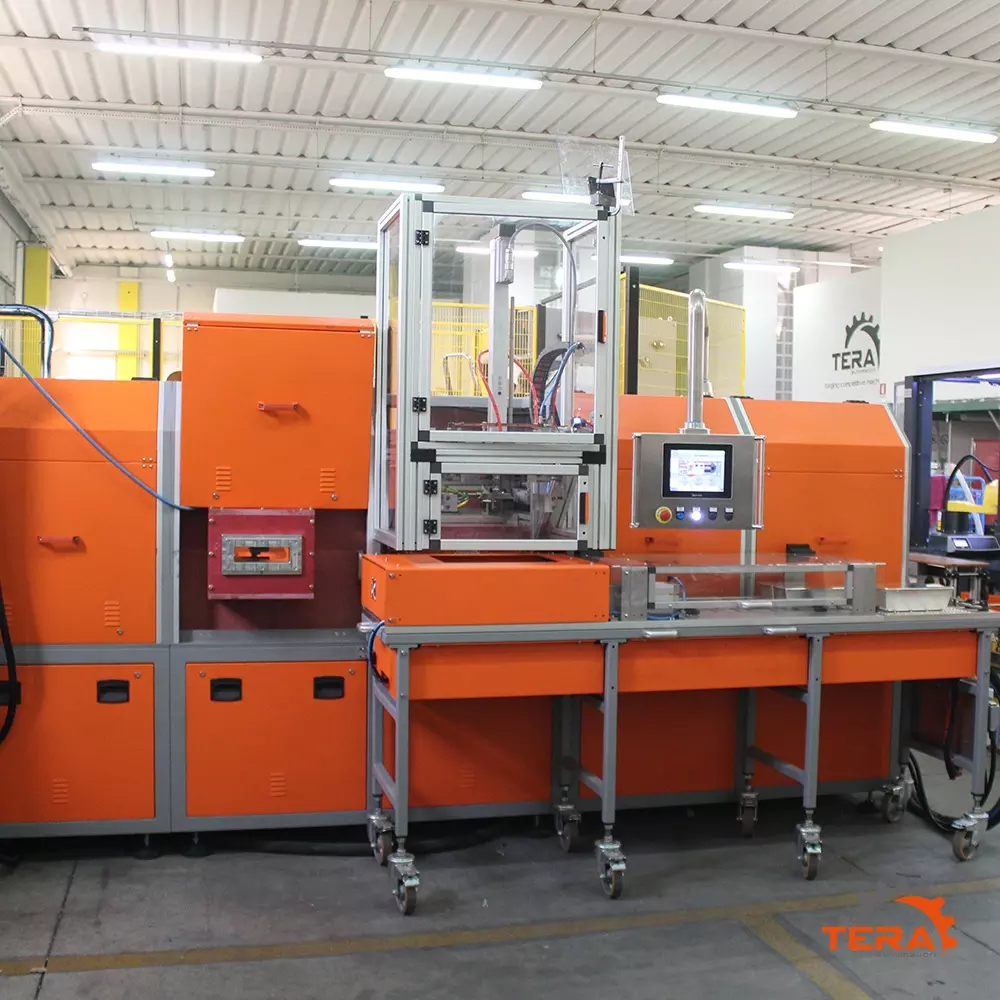

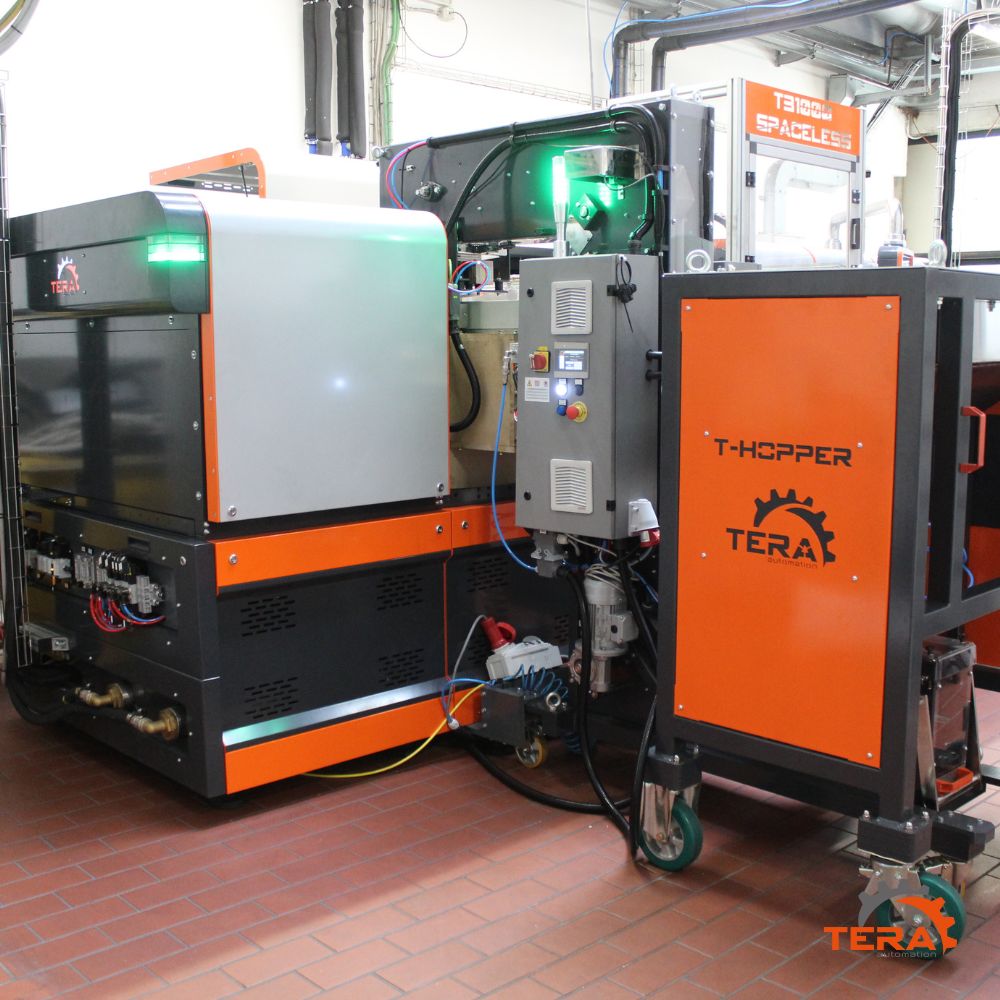

T-BARMASTER SPACELESS GOOD DELIVERY

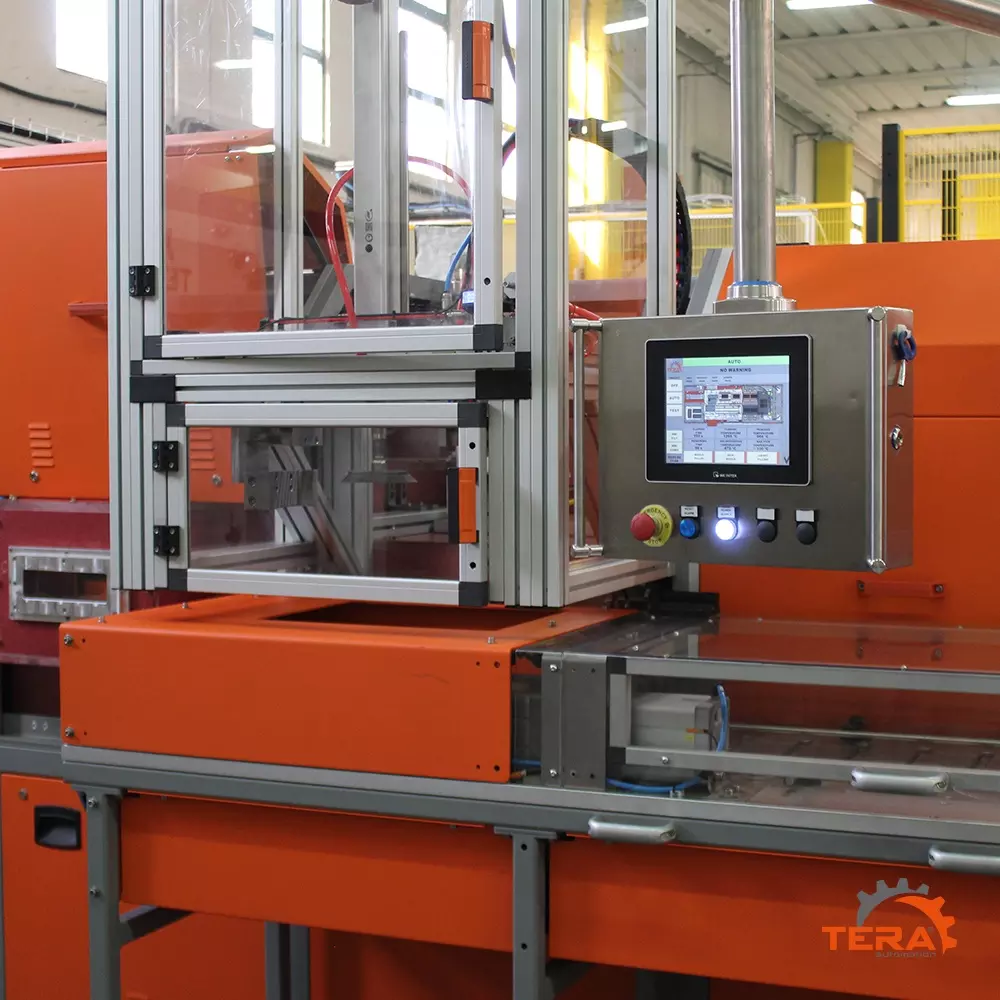

T-Barmaster Spaceless Good Delivery is an integrated system that allows grain to be transformed into Good Delivery bars in a fully automated process.

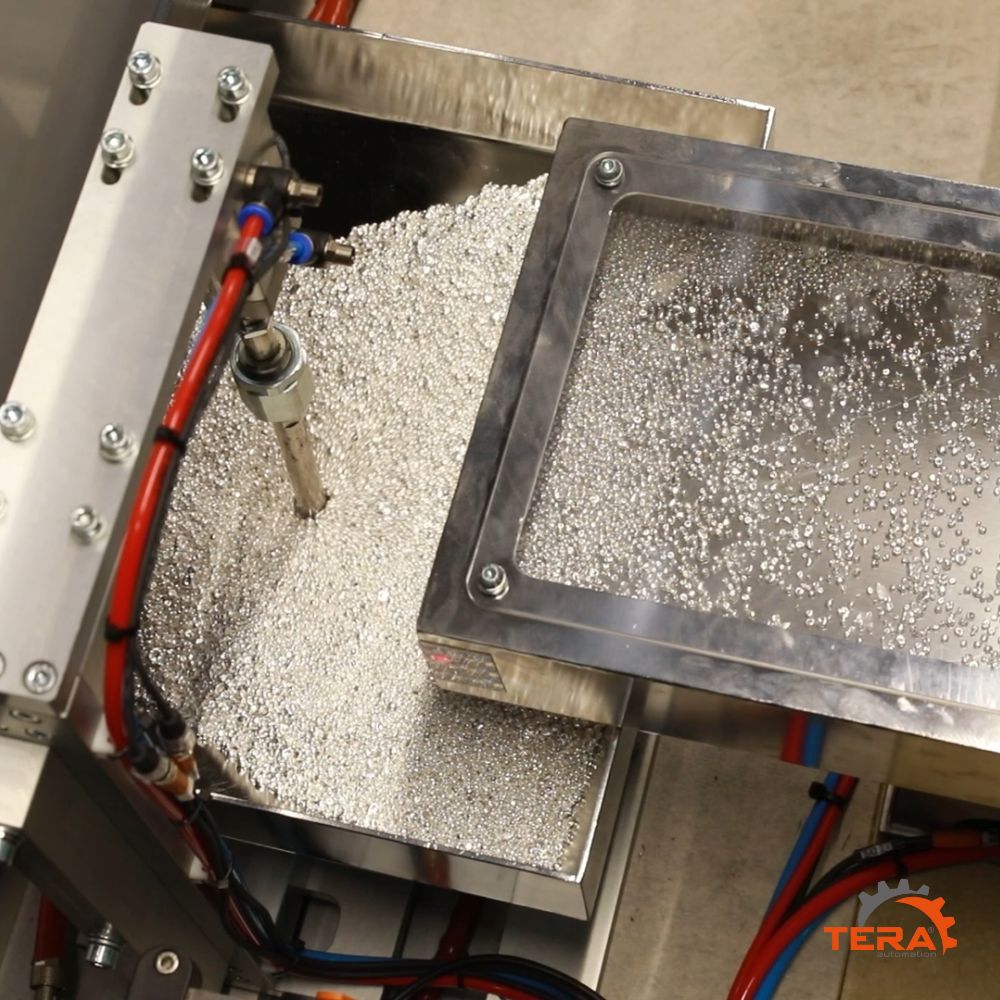

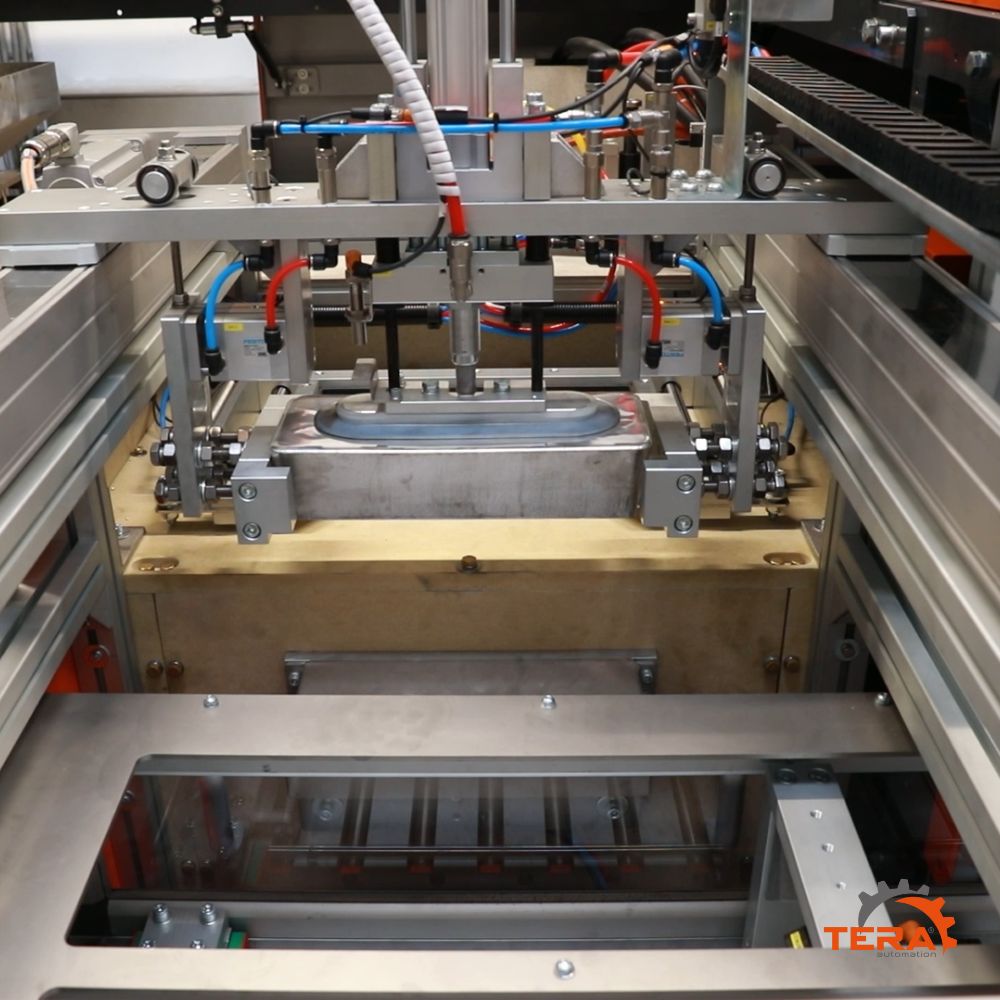

The grain is conveyed, dosed and poured into the molds, and then melted and transformed into an ingot.
It meets the most critical requirements for precious metals refineries, notably high productivity and small footprint, as well as considerable savings on consumables due to the absence of graphite spacers.

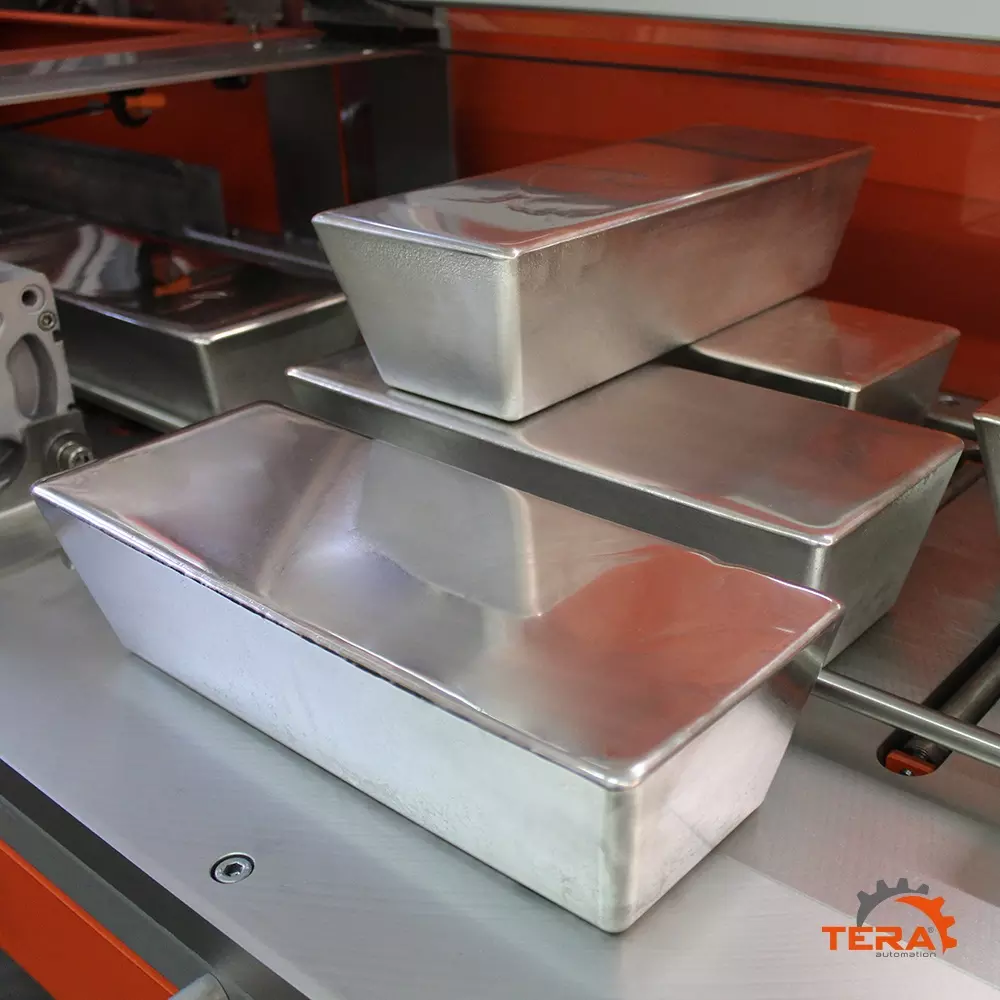

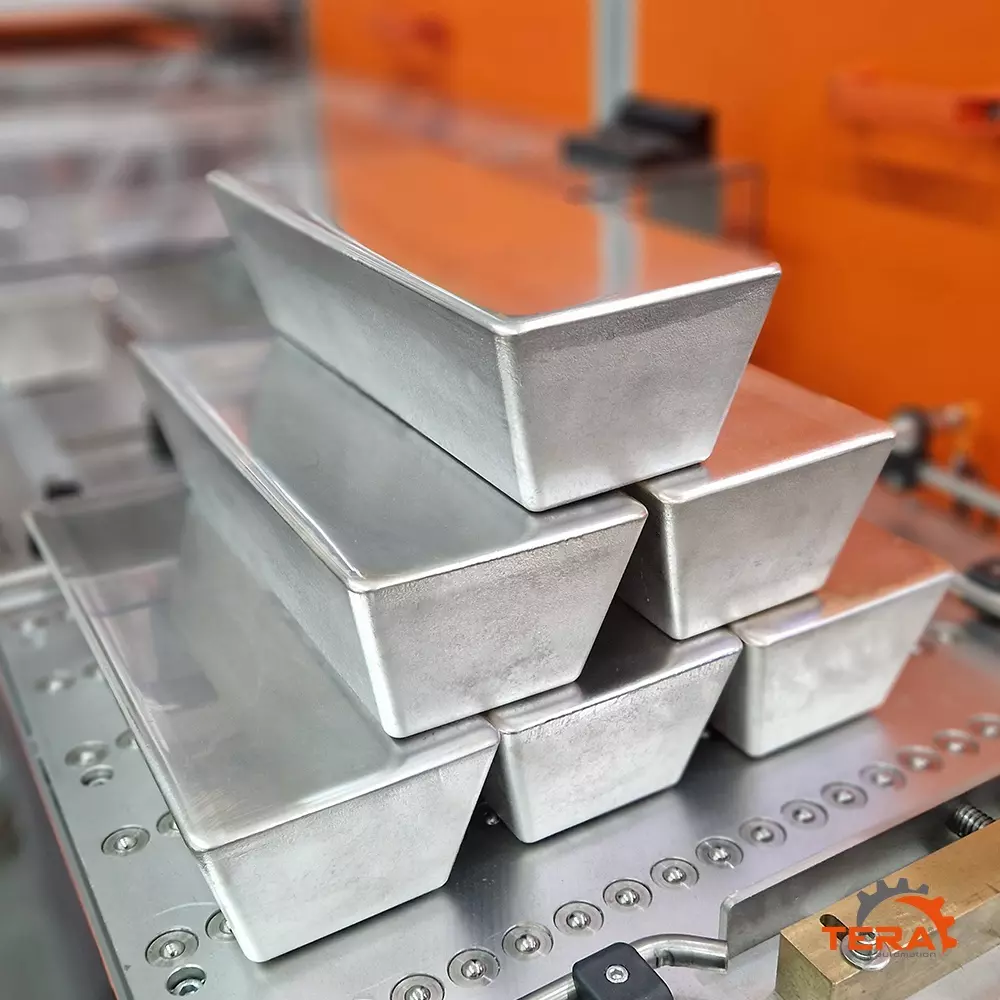

TYPES OF INGOTS PRODUCED

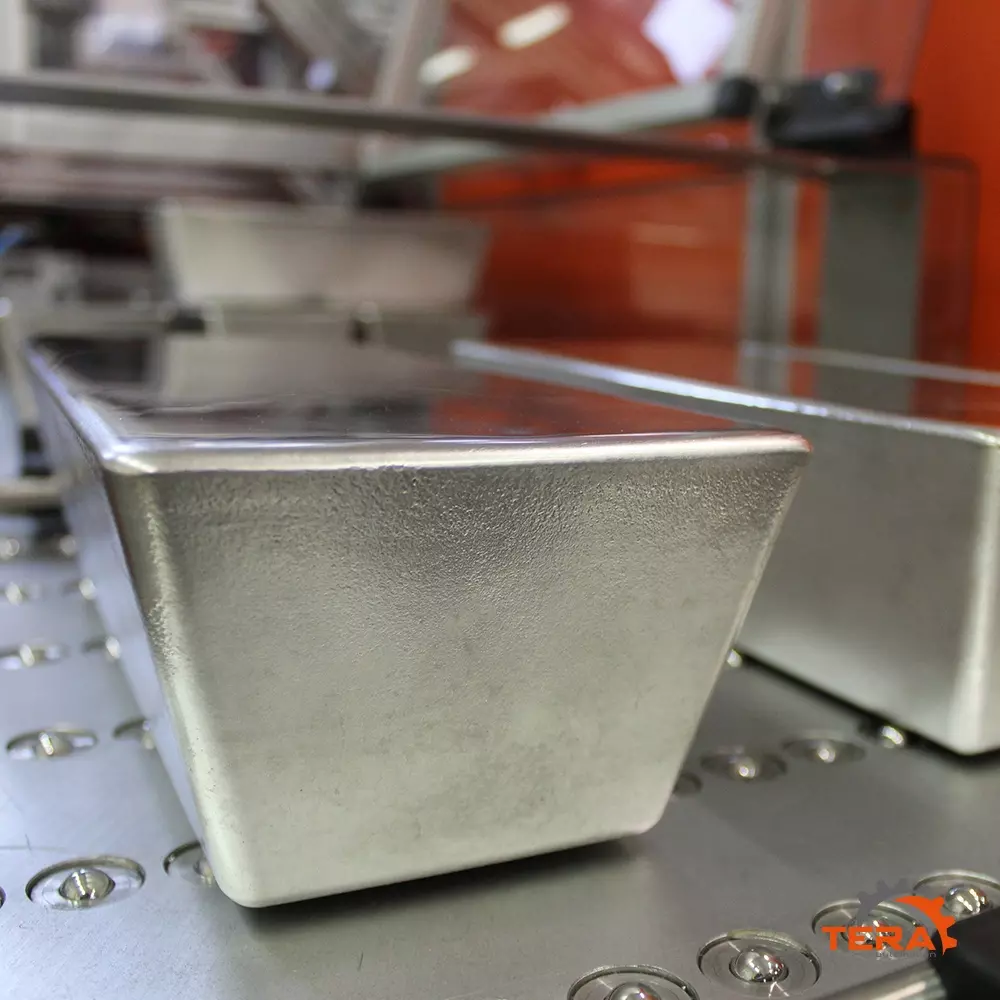

400 oz Au
1000 oz Ag

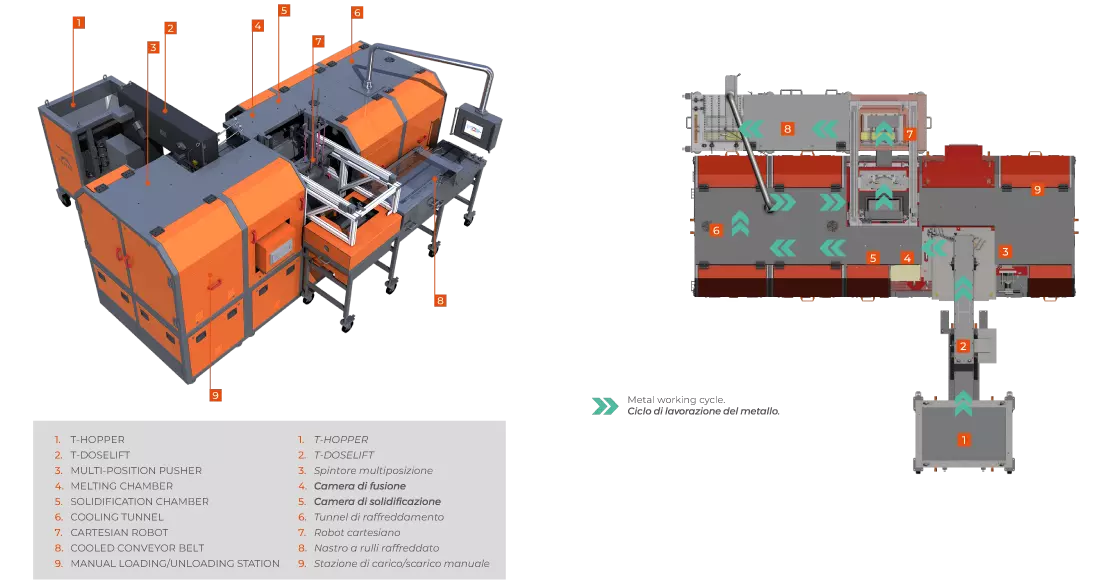

T-BARMASTER SPACELESS GOOD DELIVERY DOWNLOAD SCHEME

TECHNICAL CHARACTERISTICS:

MODELT-Barmaster Spaceless Good Delivery
VERSIONPower 60 kWPower 80 kWPower 100 kW
Converter power 40 kW 60 kW 80 kW
Productivity 3-4 x 1000 oz Ag
8-10 x 400 oz Au		 4-5 x 1000 oz Ag
10-12 x 400 oz Au		 5-6 x 1000 oz Ag
12-14 x 400 oz Au
Efficiency (Kg x h/kW) 1,5 1,5 1,25
BROCHURE

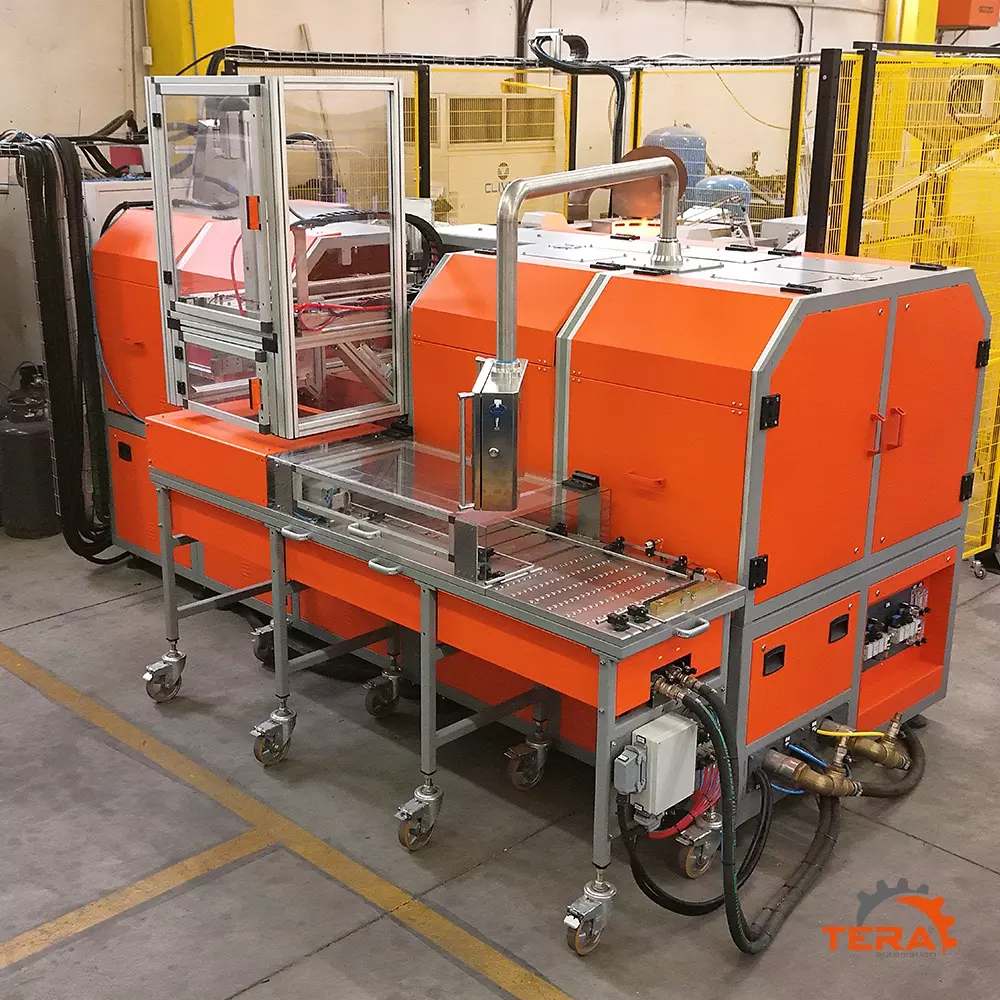

IT ONECAST

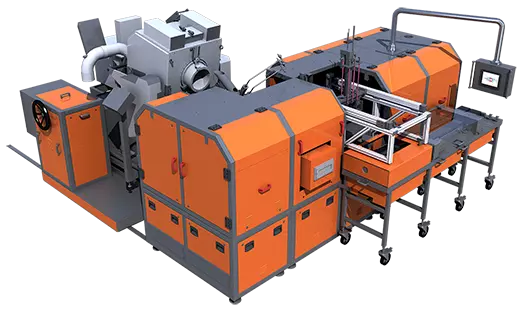

IT-Onecast is the only machine in the world capable of producing Good Delivery bars of the highest quality starting directly from refined metal.

The inspiration to realize this machine came from some of our customers who expressed their desire to skip the melting of precious metals grains and obtain the bar directly from crystals.
IT-Onecast is a system for the production of top quality Good Delivery bars in a single production cycle.
Resulting from the ingenious combination of two established and efficient technologies, IT-Onecast allows metal to be melted in its different forms (powder or crystals) and poured directly into the ingot mold.

TYPES OF INGOTS PRODUCED

400 oz Au
1000 oz Ag
IT ONECAST

IT CONSISTS OF TWO MAIN SECTIONS:

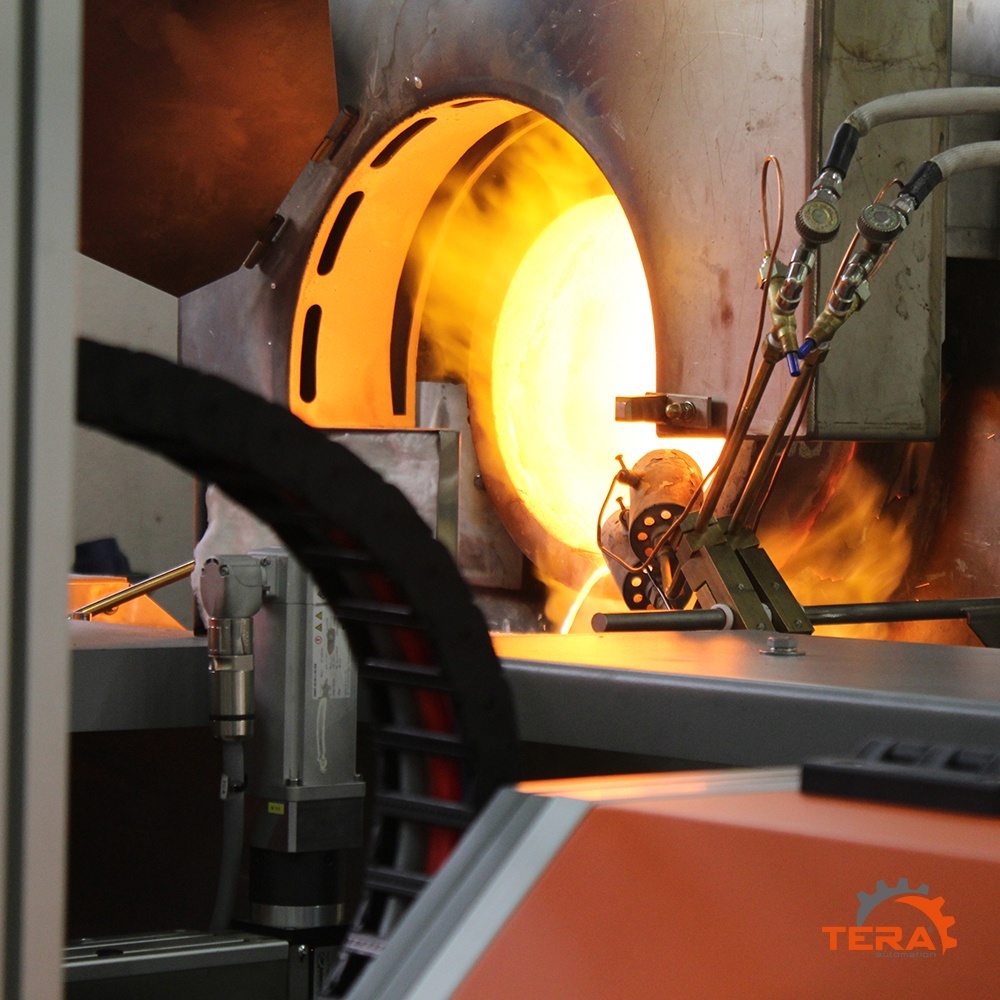

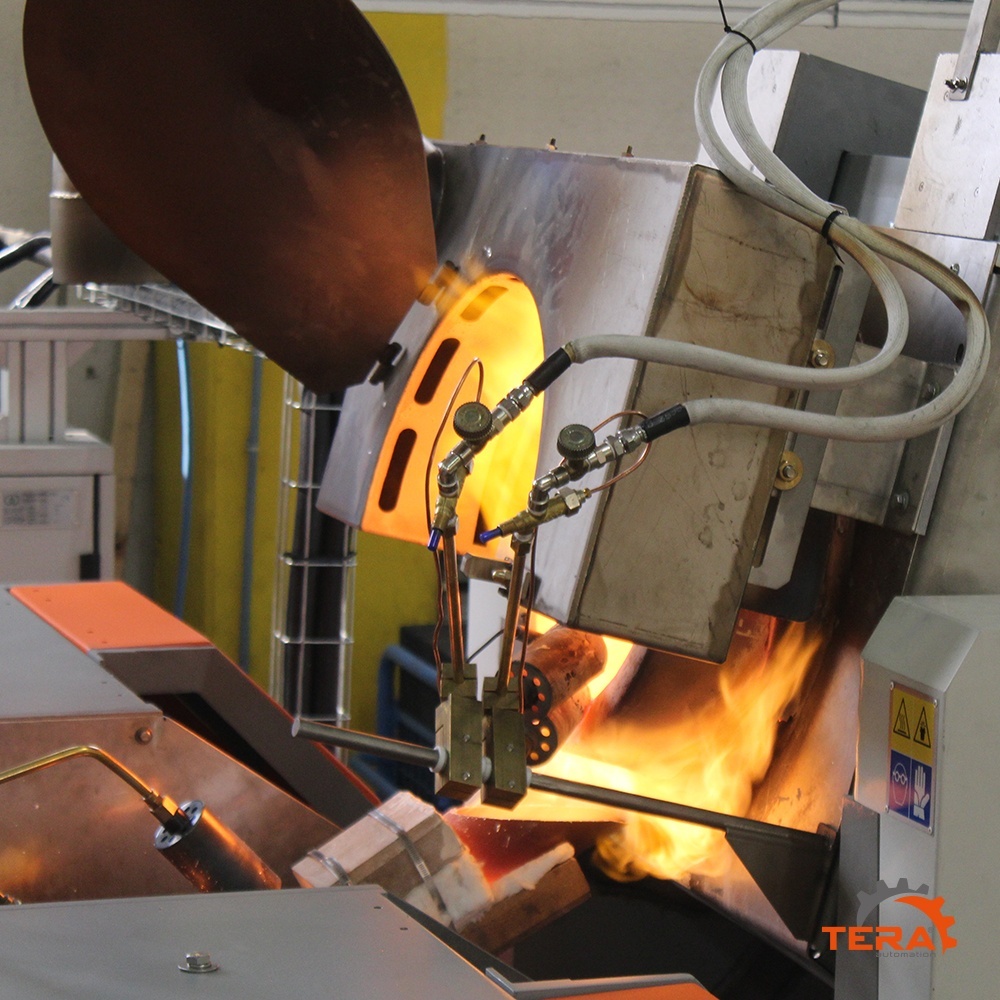

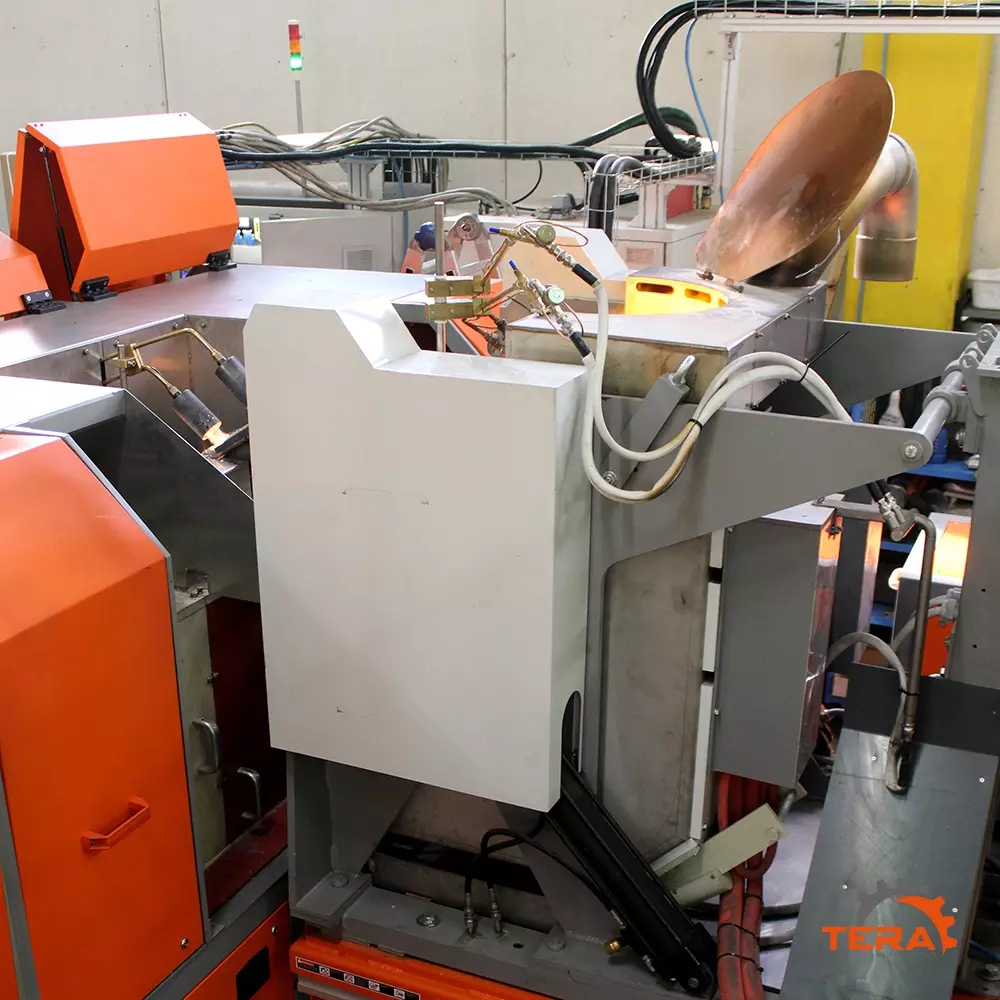

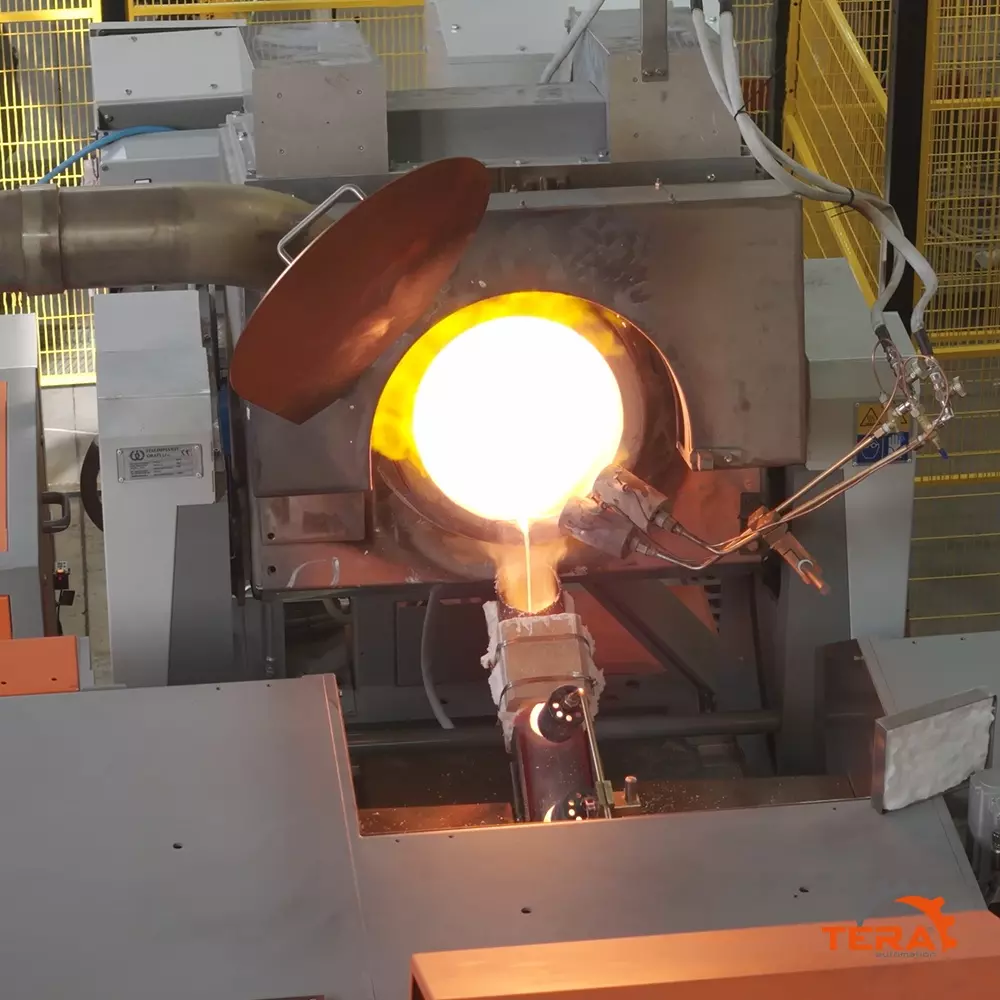

INDUCTION TILTING FURNACE

INDUCTION TILTING FURNACE

For melting refined metal.

SPACELESS GOOD DELIVERY

SPACELESS GOOD DELIVERY

Automatic tunnel furnace for dosing, homogenization, solidification and cooling of ingots in Good Delivery standard of the highest quality.

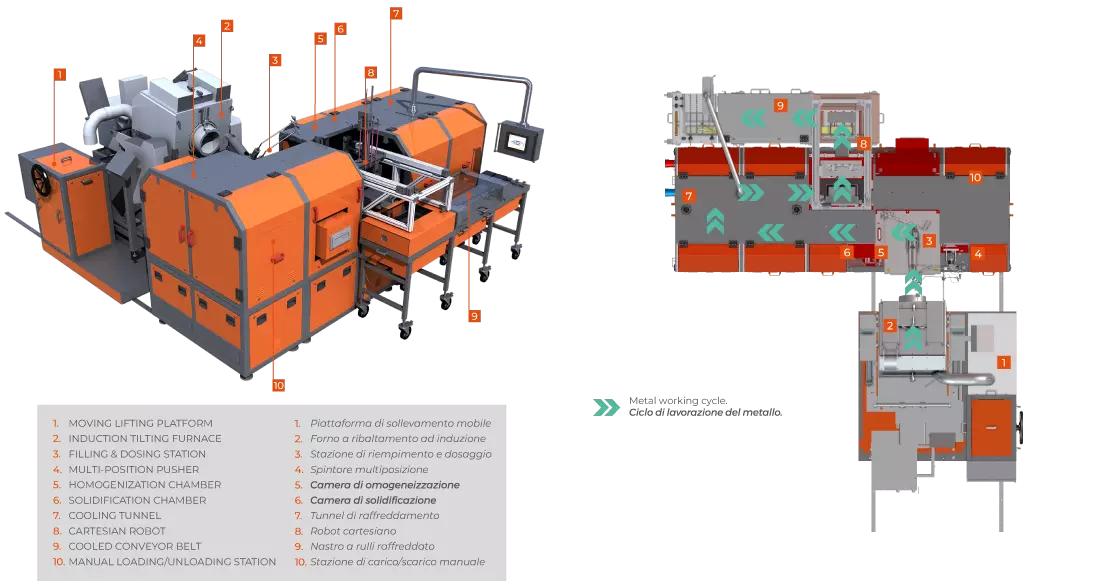

IT-ONECAST DOWNLOAD SCHEME

TECHNICAL CHARACTERISTICS:

VERSIONIT-OnecastIT-Onecast Maxi
Furnace FIM 100 FIM 150
Total absorbed power 100/140 kW 150/190 kW
Productivity 6-7 x 1000 oz Ag
18-20 x 400 oz Au		 7-9 x 1000 oz Ag
20-22 x 400 oz Au
Dimensions (LxWxH) 6230 x 6215 x 2450 mm
Converter dimensions (LxWxH) 1100 x 918 x 1939 mm 1500 x 1200 x 1997 mm
N° Ingot molds 8
Overall weight 8125 kg 8275 kg
BROCHURE VIDEO

CHOOSE THE AUTOMATION LEVEL THAT BEST SUITS YOUR COMPANY

AUTOMATION FOR FLAWLESS INGOTS PRODUCTION

Each Tera Automation machine can be conceived as part of a modular line which can be combined according to the company's needs and facility space. Each machine can be fitted to existing machines and a full line can be developed over time.

The standard model of our T-Barmaster™ is semi-automatic, but it can reach a high level of automation. By adding accessories, machines and robots, operators can set the machine at increasing levels of automation and let it work accordingly:

T-Dosing™ è progettata per eseguire una dosatura estremamente accurata – con uno scarto fino al millesimo di grammo – dei metalli preziosi destinati alla fusione e può essere abbinata ad altri macchinari, in accordo con le esigenze specifiche di ciascun operatore.
